General toolbar

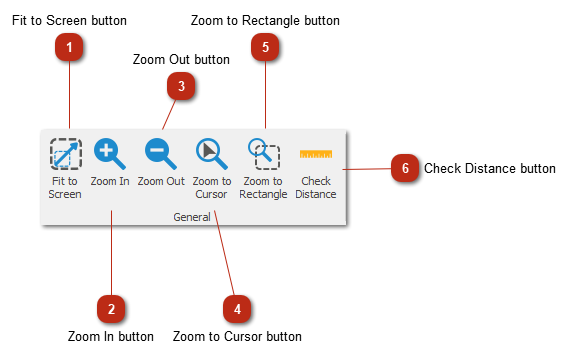

General toolbar
1

Fit to Screen button

1. Fit to Screen button
Scales the design to fit to the screen.
2

Zoom In button

2. Zoom In button
Zooms into design canvas.
3

Zoom Out button

3. Zoom Out button
Zooms out of design canvas.
4

Zoom to Cursor button

4. Zoom to Cursor button
Zooms to mouse position on design canvas.
Use the mouse wheel to zoom.
5

Zoom to Rectangle button

5. Zoom to Rectangle button
Zooms to rectangle area.
Left click and hold mouse button to start area, then drag to end position and release mouse button.
6

Check Distance button

6. Check Distance button
BLASTMAPTM will remain in this mode until the mode is changed.
Left click on the design canvas to set the starting position.
The measured distance will be displayed as you move the mouse around the canvas.
