How to View the PPV Color Contour

The PPV color contour and the PPV Legend will be visible after the PPV calculation on the seismographs is completed and if the vibration layer is set to visible.

To set the contour interval go to the Design Analysis menu.

Change the Contour Interval value to your needs.

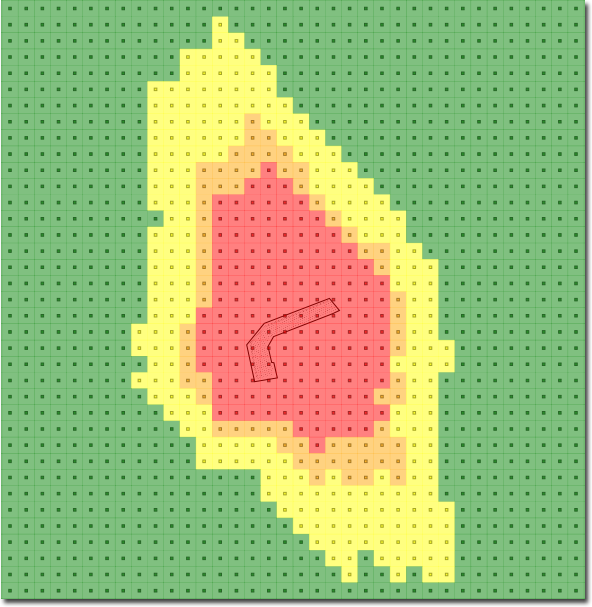

There are four contour colors visible in the PPV Legend:

Green = 0 - Contour Interval Value
Yellow = Contour Interval Value -> 2X (Contour Interval Value)
Orange = 2X(Contour Interval Value) -> 3X(Contour Interval Value)
Red = 3X(Contour Interval Value) -> Maximum PPV Value

Note: If the PPV safety limit of the blast is for instance a PPV of 75, make the Contour interval the same value to display the safe area in green.

Left-Clicking on the Contour Colors in the PPV Legend will hide / unhide the prediction point that falls within that PPV contour range.
