Non-electric Timing Properties

Non-electric Timing Properties

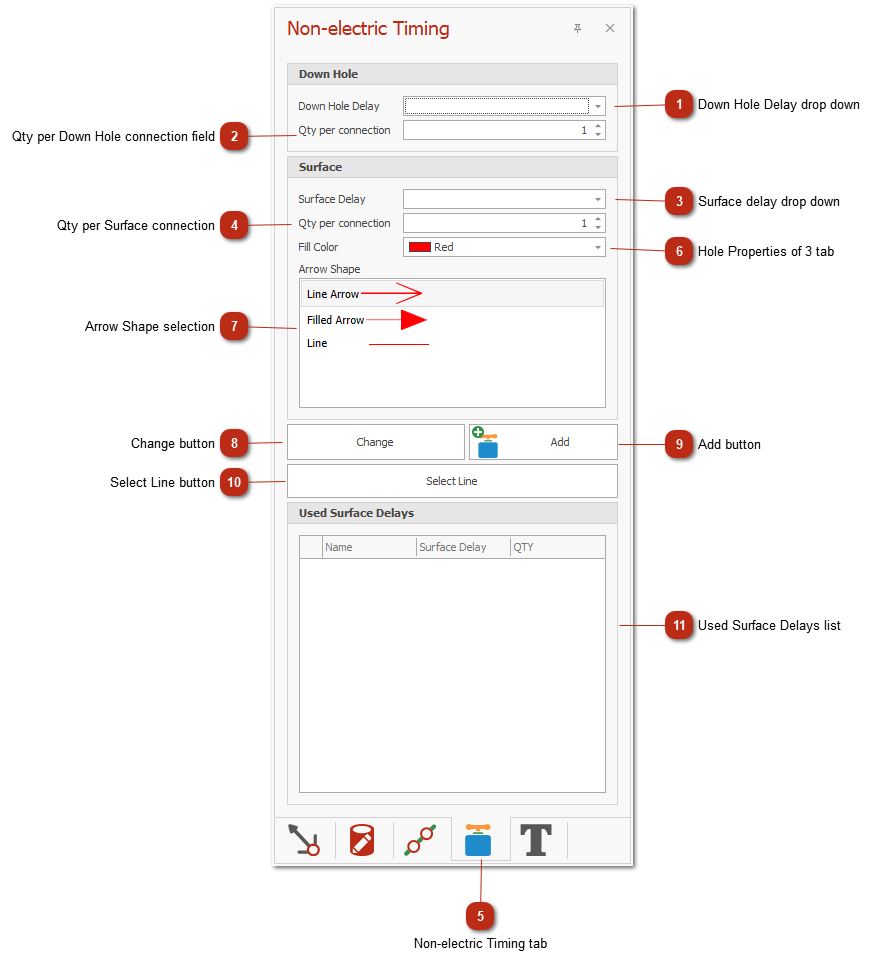

DockPanel
1

Down Hole Delay drop down

1. Down Hole Delay drop down
Select the down hole delay to add / change on the design.
The list is populated from the non-electric database.
2

Qty per Down Hole connection field

2. Qty per Down Hole connection field
Specify the amount to be allocated per connection.
Default is 1
3

Surface delay drop down

3. Surface delay drop down
Select the surface delay to add / change on the design.
The list is populated from the non-electric database.
4

Qty per Surface connection

4. Qty per Surface connection
Specify the amount to be allocated per connection.
Default is 1
5

Non-electric Timing tab

5. Non-electric Timing tab

6

Hole Properties of 3 tab

6. Hole Properties of 3 tab

7

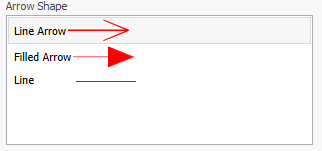

Arrow Shape selection

7. Arrow Shape selection
Select the display shape to represent the connector.
8

Change button

8. Change button
Applies the current properties to selected connections.
Selected connections are displayed with blue outlines.
9

Add button

9. Add button
Switches to add mode. Will remain in this mode until other mode selected.
Left click to start connection, continue left clicking on holes to connect them to the line.
10

Select Line button

10. Select Line button
Switches to select line mode.
Left click on non-electric connection or hole connected to it.
The entire line will be selected.
11

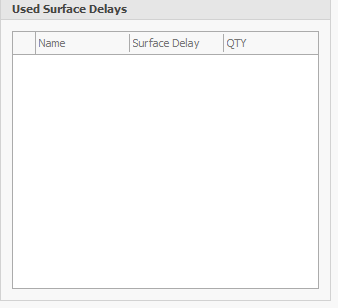

Used Surface Delays list

11. Used Surface Delays list
In this area a list will be displayed of used surface delays.
When selecting one, all the connection with that surface delay will be selected.
