Pattern toolbar

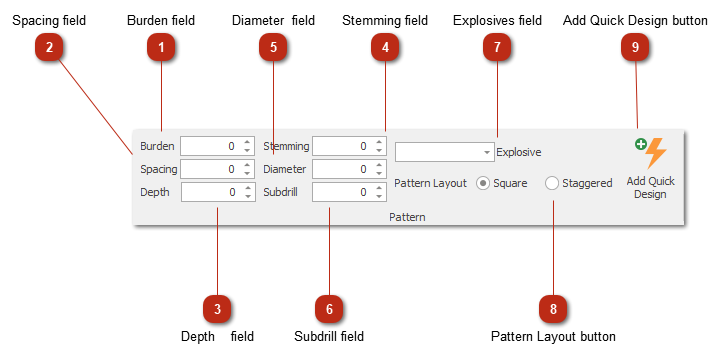

Pattern toolbar
1

Burden field

1. Burden field
Enter  hole burden for quick design.
2

Spacing field

2. Spacing field
Enter  hole spacing for quick design.
3

Depth    field

3. Depth field
Enter  hole depth for quick design.
4

Stemming field

4. Stemming field
Enter  hole top stemming for quick design.
5

Diameter  field

5. Diameter field
Enter  hole diameter for quick design.
6

Subdrill field

6. Subdrill field
Enter design hole top stemming for quick design.
7

Explosives field

7. Explosives field
Drop down to select the explosives to be used.
8

Pattern Layout button

8. Pattern Layout button
Determines if the quick design pattern will be square or perfectly staggered.
9

Add Quick Design button

9. Add Quick Design button
This will add a pattern overlay onto your design.
Your design must have a block outline.
The pattern inside the block outline will have blue holes and grey holes outside the outline.
In this mode you can move the holes only with the keyboard arrow keys.
Ctrl + left / right arrow keys will rotate the pattern.
Pressing crtl + alt will show the displacement  and rotation popup , where you can adjust the values.
When the holes are perfectly placed onto your block, press enter or click on the bottom right popup to accept the pattern.
Once this is done the holes outside the block outline will be removed.
