Pattern toolbar

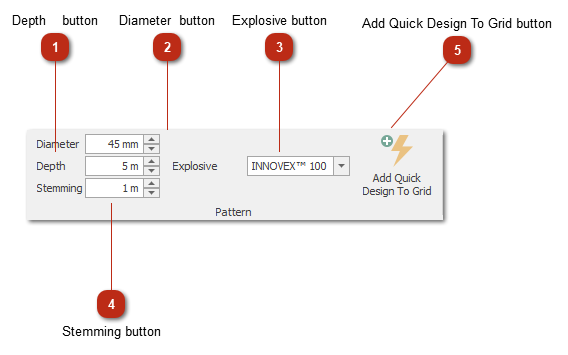

Pattern toolbar
1

Depth    button

1. Depth button
Sets the hole depth.
2

Diameter  button

2. Diameter button
Sets the hole diameter.
3

Explosive button

3. Explosive button
Select used explosives.
4

Stemming button

4. Stemming button
Sets the hole stemming.
5

Add Quick Design To Grid button

5. Add Quick Design To Grid button
Adds body and lifter holes to the grid based on provided parameters.
