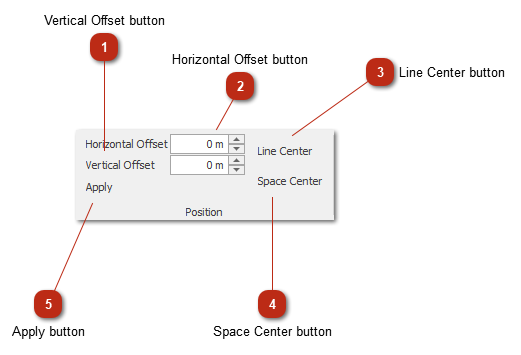

Position toolbar

Position toolbar
1

Vertical Offset button

1. Vertical Offset button
Offset the grid starting point vertically.
2

Horizontal Offset button

2. Horizontal Offset button
Offset the grid starting point horizontally.
3

Line Center button

3. Line Center button
Adjusts the offset above by starting with a line in the center of the tunnel design.
4

Space Center button

4. Space Center button
Adjusts the offset above by starting with a space in the center of the tunnel design.
5

Apply button

5. Apply button
