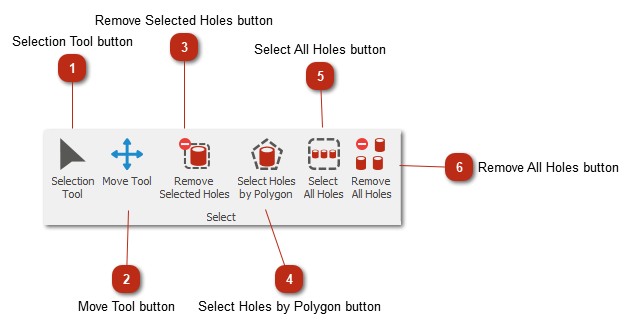

Select toolbar

Select toolbar
1

Selection Tool button

1. Selection Tool button
Switches to default selection mode.
2

Move Tool button

2. Move Tool button
Switches to move mode.
3

Remove Selected Holes button

3. Remove Selected Holes button
Removes the hole selection from the design.
4

Select Holes by Polygon button

4. Select Holes by Polygon button
Select holes by left clicking on the design to create polygon points.
Double left click to finish the process.
Every hole inside the polygon will then be selected.
5

Select All Holes button

5. Select All Holes button
Selects all the holes on the design.
6

Remove All Holes button

6. Remove All Holes button
Will remove all holes from your design.
