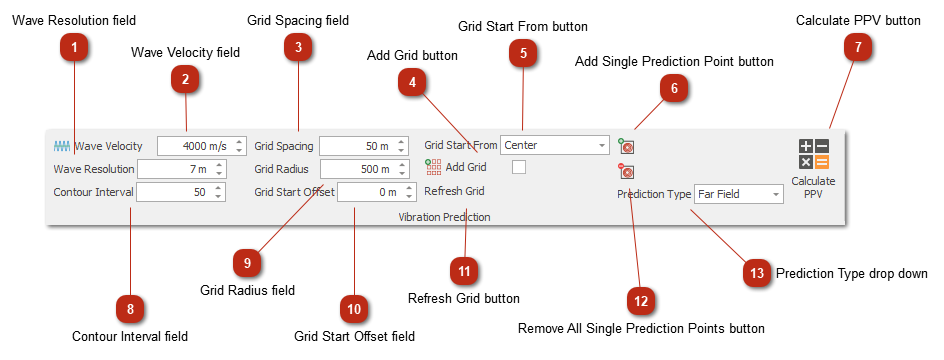

Vibration Prediction toolbar

Vibration Prediction toolbar
1

Wave Resolution field

1. Wave Resolution field
Changes wave resolution
2

Wave Velocity field

2. Wave Velocity field
Changes wave velocity
3

Grid Spacing field

3. Grid Spacing field
Sets the spacing of prediction point grid.
4

Add Grid button

4. Add Grid button
Adds a grid of prediction points to your design.
5

Grid Start From button

5. Grid Start From button
Grid starting point.
6

Add Single Prediction Point button

6. Add Single Prediction Point button
Adds a single prediction point to the design.
When in this mode, left-click on the canvas to start measure line. Do this to measure from a point.
The second left click will place the prediction point on the design.
If you dont need to measure distance, just double left-click to ad the prediction point.
7

Calculate PPV button

7. Calculate PPV button
This will start the ppv calculation for all the prediction points on the design.
Note: The ppv is reset when timing, charge or hole position changes. If this happens press the calculate button again.

8

Contour Interval field

8. Contour Interval field
This is the interval value for the ppv leggend. Normally set this value to the minimum desired ppv value.
9

Grid Radius field

9. Grid Radius field
Change how far the grid will expand from the center of the blast design.
10

Grid Start Offset field

10. Grid Start Offset field
Offset from the center of the design.
11

Refresh Grid button

11. Refresh Grid button
Redraws the grid on the canvas.
12

Remove All Single Prediction Points button

12. Remove All Single Prediction Points button
Removes all single prediction points from the design
13

Prediction Type drop down

13. Prediction Type drop down
Select between far / near field calculation for ppv prediciton.
