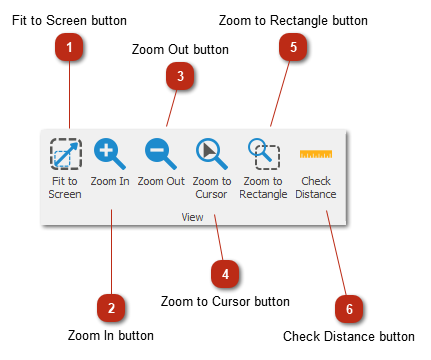

View toolbar

View toolbar
1

Fit to Screen button

1. Fit to Screen button
Fits the design on the design canvas. Will fit to block outline if it is present in the design, or to holes if there are holes only.
2

Zoom In button

2. Zoom In button
Zooming in to design canvas.

3

Zoom Out button

3. Zoom Out button
Zooming out of design canvas
4

Zoom to Cursor button

4. Zoom to Cursor button
Use this mode to zoom to the mouse position with the mouse wheel.
5

Zoom to Rectangle button

5. Zoom to Rectangle button
Zooms to rectangle area. Left click and hold , then drag to specify the area. Release left mouse button when finished.

6

Check Distance button

6. Check Distance button
Displays the distance between 2 points. Left click to indicate the start position, then drag. To finish, left click again. BLASTMAPTM will remain in this mode until you select the default select mode.
The font size of the distance tool can be changed by the font display size in the layers dock panel.
