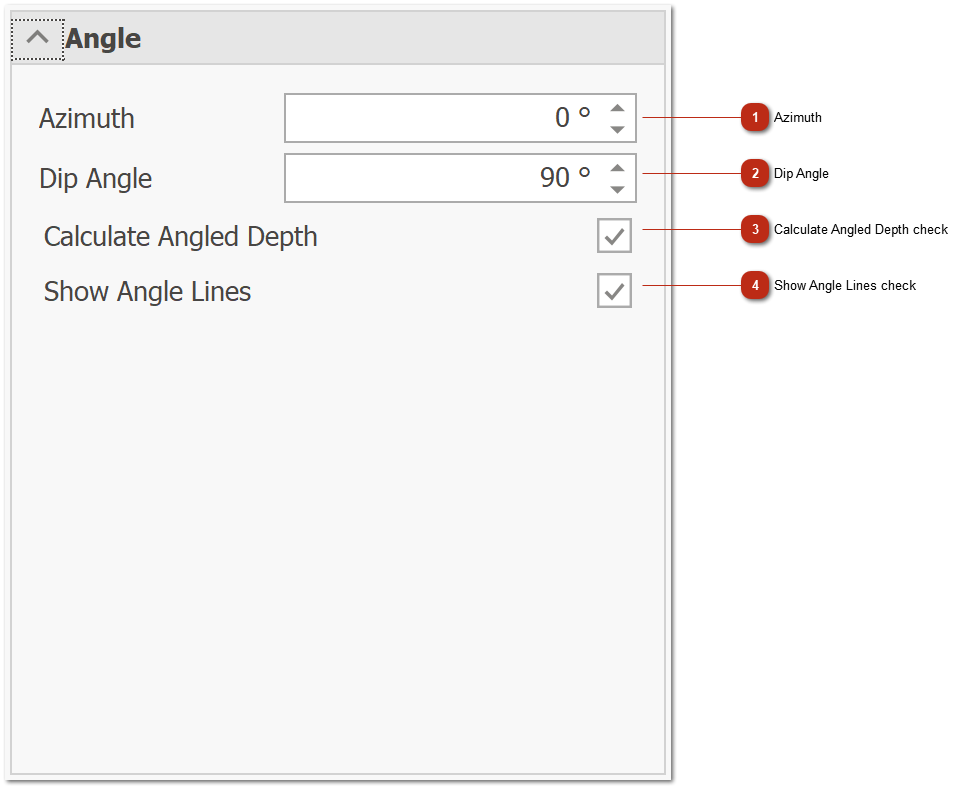

Angle section

Angle section

Layout control group element
1

Azimuth

1. Azimuth
Edit field to change the angle direction of the selected holes.
2

Dip Angle

2. Dip Angle
By default the holes will have a angle of 90 deg. This means its perfectly vertical. To angle the selected holes decrease this value.
3

Calculate Angled Depth check

3. Calculate Angled Depth check
Check this value to re calculate your hole length.
4

Show Angle Lines check

4. Show Angle Lines check
Select this value to display the hole angle as a line in the 2D design canvas.
