Hole Properties

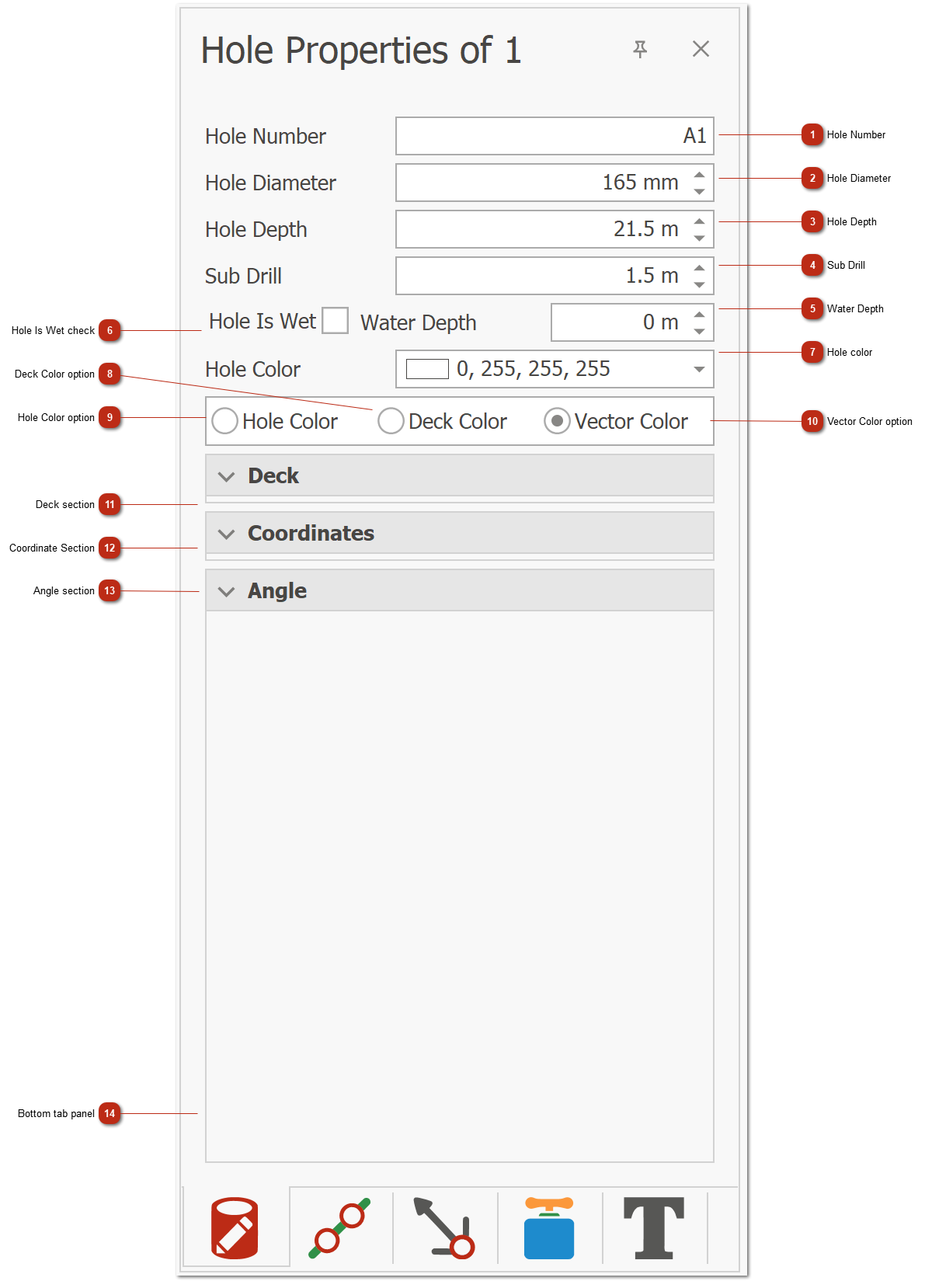

Editing Hole properties can only be done through the Hole Properties dock panel.

When changing hole properties, only the current hole selection will be affected by the changes.

Hole Properties

Hole Number

Edit field to change the hole number. Note that changing this value will change for all selected holes. Only manually change this field when 1 hole is selected.

Hole Diameter

Edit field to change the selected holes diameter

Hole Depth

Edit field to change the hole depth of the selected holes.

Sub Drill

Edit field to change the sub drill value of the selected holes.

Water Depth

Edit field to change the selected holes water depth value.

Hole Is Wet check

Check this value if the selected holes is wet. This will change the average in hole explosive density. And in turn the charge mass per hole.

Hole color

This color picker will change the fill color of the selected holes. The outline color will always be black, and selected holes outline color will be blue.

Deck Color option

When this option is selected all holes will display associated deck fill color.

Hole Color option

When selected all the holes will display the user selected fill color from the color picker above.

Vector Color option

When this option is selected the fill color of the holes will match the fill color of the vector control that timed the hole.

Deck section

11. Deck section

Contains the deck properties for the selected holes.

Go to Deck section

Coordinate Section

12. Coordinate Section

Contains the hole coordinate properties.

Go to Coordinates

Angle section

13. Angle section

Contains all the angle properties of selected holes.

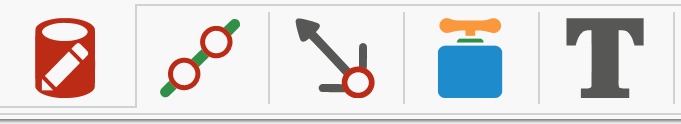

Bottom tab panel

14. Bottom tab panel

The contents of Hole Properties

Angle section

Coordinates section

Deck section
