AXXIS Logger toolbar

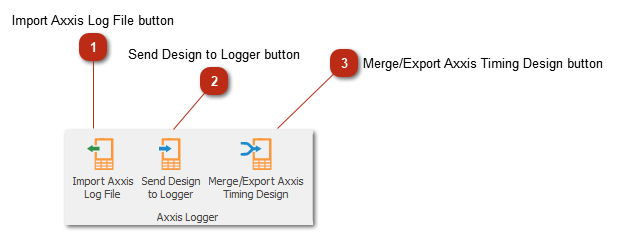

AXXIS Logger toolbar
1

Import Axxis Log File button

1. Import Axxis Log File button
Imports the AXXIS log file from device directly (needs windows mobile device center) , or from a USB stick.
2

Send Design to Logger button

2. Send Design to Logger button
Sends the selected logging line to the AXXIS logger directly (needs windows mobile device center) , or to a selected file location.
3

Merge/Export Axxis Timing Design button

3. Merge/Export Axxis Timing Design button
Merges all the log lines in the design into a single file. And then sends it to the AXXIS logger directly (needs windows mobile device center) , or to a selected file location.
