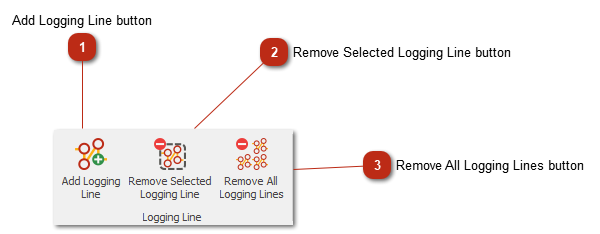

Logging Line toolbar

This is only a line connecting holes, no detonators from AXXIS.

This can be used after importing detonators from AXXIS to redefine the lines and in turn send them back to the AXXIS logger.

Or to indicate a predefined log line walking path that can be given to the person that will log the detonators on the blast.

Left click outside your block to put the initial point with the label in position.

Then left click to indicate the path, the line will snap to the holes along the way.

Double left click to finish.

Removes the selected log line from the design. The selected log line will be blue. Unselected will be green.

Will remove all the log lines in the design.
