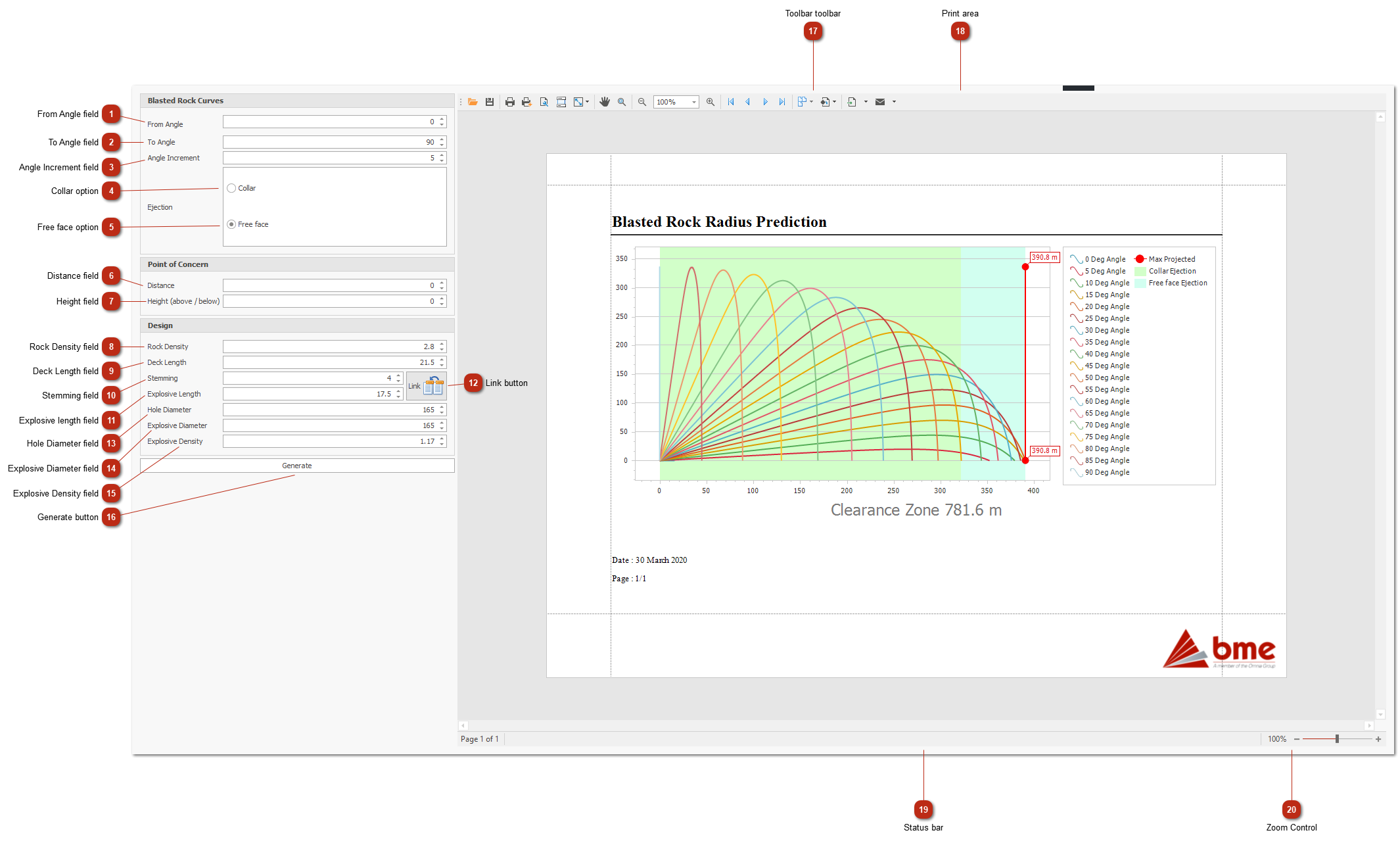

Blasted Rock Radius Prediction window

Blasted Rock Radius Prediction window

Layout control group element
1

From Angle field

1. From Angle field

2

To Angle field

2. To Angle field

3

Angle Increment field

3. Angle Increment field
Increment angle value.
4

Collar option

4. Collar option
Choose this option to see only the collar ejection in the prediction.
5

Free face option

5. Free face option
Choose this option to see the free face ejection with the collar ejection in the prediction.
6

Distance field

6. Distance field
Distance from blast.
7

Height field

7. Height field
Specifies the height (above / below ) the blast in distance.
8

Rock Density field

8. Rock Density field
Specify the rock density value.
9

Deck Length field

9. Deck Length field
Length of deck.
10

Stemming field

10. Stemming field
Stemming length
11

Explosive length field

11. Explosive length field
Length of explosives
12

Link button

12. Link button
Links the explosive length with the stemming length.
Changing either the stemming or explosive length will effect the other.
When unchecked the link is broken and each field change will not change the other.
13

Hole Diameter field

13. Hole Diameter field
Diameter of hole
14

Explosive Diameter field

14. Explosive Diameter field

15

Explosive Density field

15. Explosive Density field

16

Generate button

16. Generate button
Will render the prediction using the above values.
17

Toolbar toolbar

17. Toolbar toolbar
Use this toolbar for printing and exporting of prediction.
18

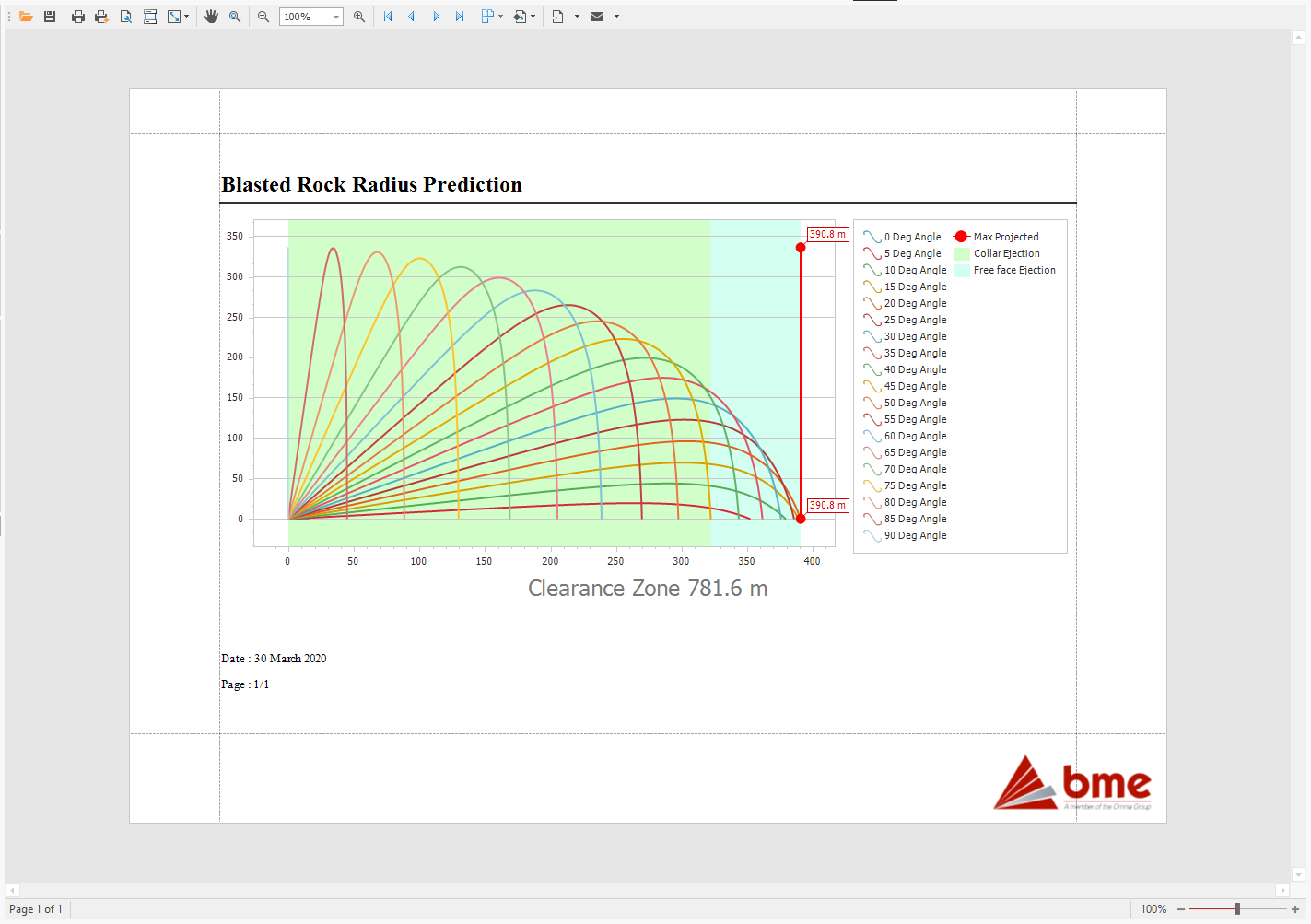

Print area

18. Print area

19

Status bar

19. Status bar

20

Zoom Control

20. Zoom Control



The contents of Blasted Rock Radius Prediction window

Toolbar toolbar
