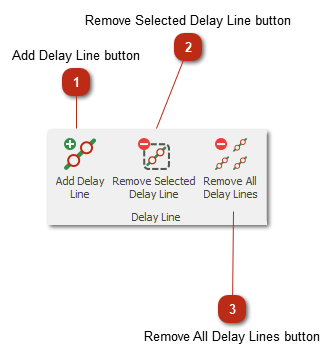

 Add Delay Line buttonBLASTMAPTM will stay in this mode, unless another mode is selected.
Left-Click on canvas to start the line, subsequent left-clicking will add to the line.
Double left-click to end the line. The end of the line is indicated by the arrow.
|
|
 Remove Selected Delay Line buttonRemoves the selected delay line from the design. A selected delay line will be colored blue.
|
|
 Remove All Delay Lines buttonRemoves all the delay lines from the design.
|
|
