BLASTMAP™

User guide

×
Menu
Index
Search





  (c) BME, 2020

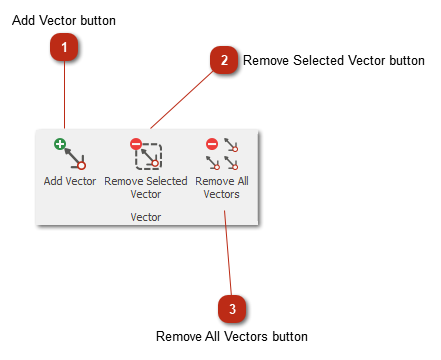

Vector toolbar

Vector toolbar
1

Add Vector button

1. Add Vector button
Adds vectors timing method to design.
BLASTMAPTM will remain in this mode, until another mode is selected.

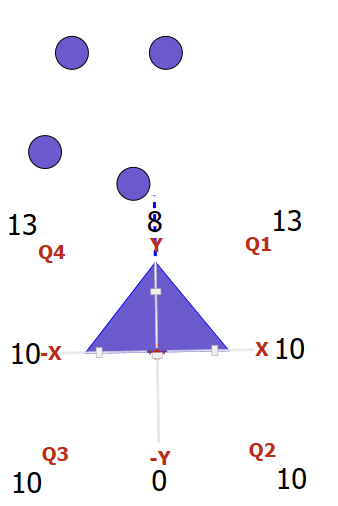

Left-click on the canvas to position the vector.
Subsequent left-clicking will add vector nodes.
Double left-click to finish vector. Where you double left click will determine the direction of the Y axxis.

2

Remove Selected Vector button

2. Remove Selected Vector button
Removes the selected vector from the design.

3

Remove All Vectors button

3. Remove All Vectors button
Removes all the vectors from the design.
