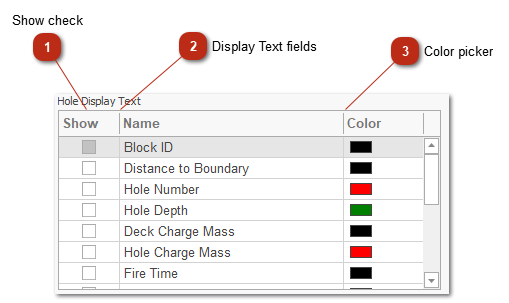

 Show checkWhen checked, the corresponding value will be displayed on the canvas.
When unchecked, the value will be removed from the canvas.
|
|
 Display Text fields-
Block ID - Displays the design name behind the block -
Distance to Boundary - Displays the distance of selected holes to the block boundary -
Hole Number - Displays the hole number -
Hole Depth - Displays the hole depth -
Deck Charge Mass - Displays the amount of explosives per deck -
Hole Charge Mass - Displays the amount of explosives per hole -
Fire Time - Displays the fire time for the deck -
Delay Time - Displays the Non-Electric delay time. Only works after fire blast simulation has run once. Needs to run to calculate the delay times -
Effective Burden Response - Displays effective burden response -
Burden Response - Displays burden response -
Logging Sequence - Displays sequence number when adding log lines -
Axxis det - Displays the detonator id for the current deck -
Vibration - Displays the ppv value on the prediction points -
Collar elevation - Displays the hole's top elevation -
Toe elevation - Displays the hole's bottom elevation
|
|
 Color pickerPick the color for each display text.
|
|
