DockPanel

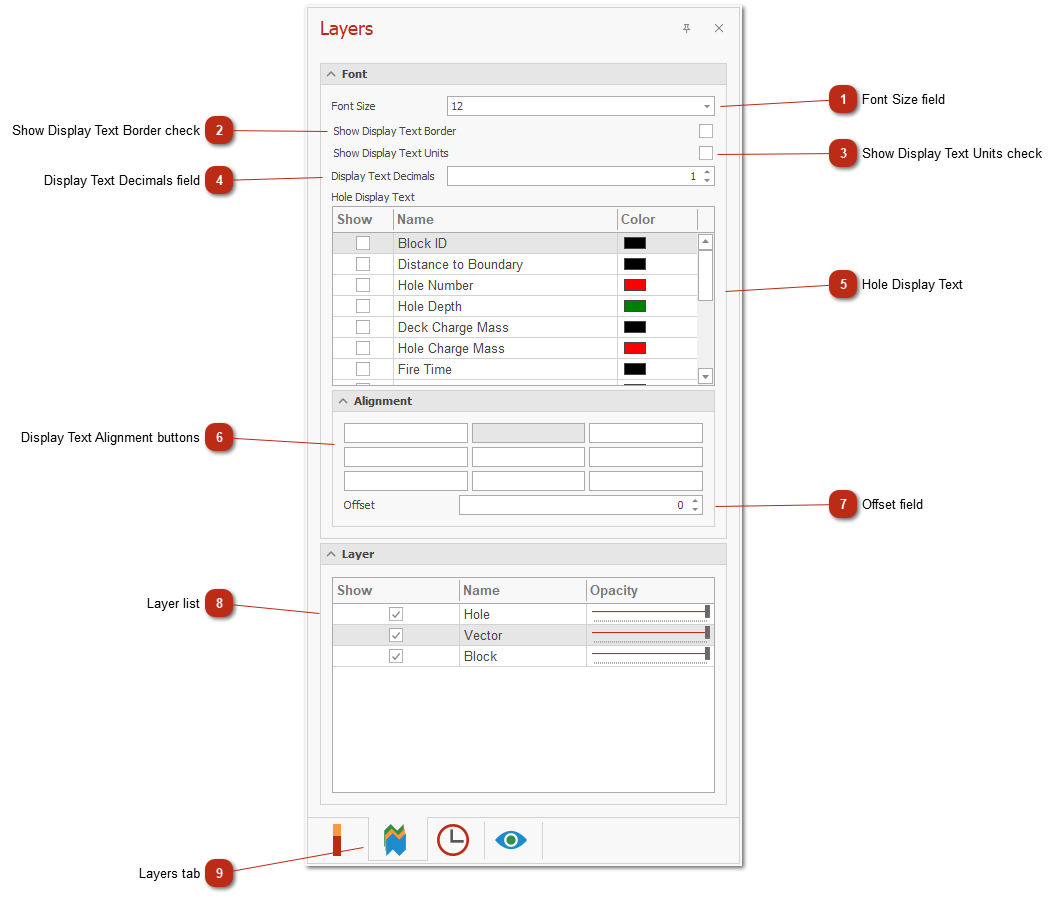

 Font Size fieldSets the selected text font size.
|
|
 Show Display Text Border checkCreates border around text.
|
|
 Show Display Text Units checkDisplay measurement units after displayed value.
|
|
 Display Text Decimals fieldAmount of decimal values to be displayed on selected text after the decimal symbol.
|
|

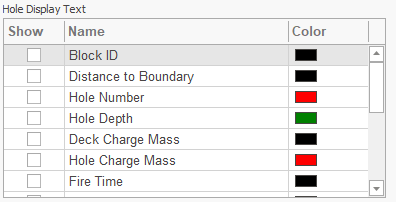

 Hole Display TextSelect what text to display on the design canvas, each with its own color.
Most of the text is relevant to the hole and will be displayed close to it.
The selected text will be displayed below each other on a hole, the order can be changed by left clicking and dragging the name.
|
|
 Display Text Alignment buttonsAlign selected text to holes by pressing the associated button.
Middle button to center on the hole.
|
|
 Offset fieldOffset value can be positive or negative number to align the text further or closer to hole respectively on the chosen allignment.
|
|

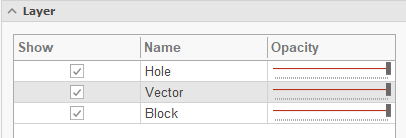

 Layer listDisplays the list of layers contained in the blast design.
These layers can be moved / reordered to display in order on top of each other.
Move a layer by left click and dragging a layer name.
|
|
 Layers tab
|
|
