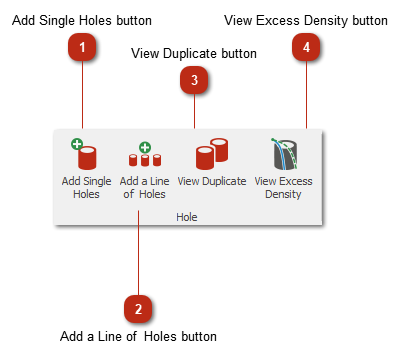

Hole toolbar

Hole toolbar
1

Add Single Holes button

1. Add Single Holes button
Switches to add single hole. BLASTMAPTM will remain in this mode until the default select arrow is selected.
Left-click to add holes.
2

Add a Line of  Holes button

2. Add a Line of Holes button
Adds a line of holes from your pattern design database.
A list of the pattern designs will appear. Select the appropriate design.
Left-click on canvas to start the line.
End the line by left-clicking.
3

View Duplicate button

3. View Duplicate button
Highlights holes with a user defined distance from each other. These holes are considered to be duplicates. The distance can be changed in user preferences->Graphic Defaults.
This function will run automatically after a hole import from file to highlight if there are duplicate holes.

4

View Excess Density button

4. View Excess Density button
This function will highlight holes that exceeds excess density values.
