Pattern toolbar

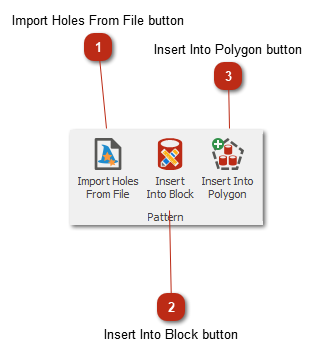

Pattern toolbar
1

Import Holes From File button

1. Import Holes From File button
Opens the import wizard, to import a file into a design.
2

Insert Into Block button

2. Insert Into Block button
This will insert a pattern design from your database into a block outline.

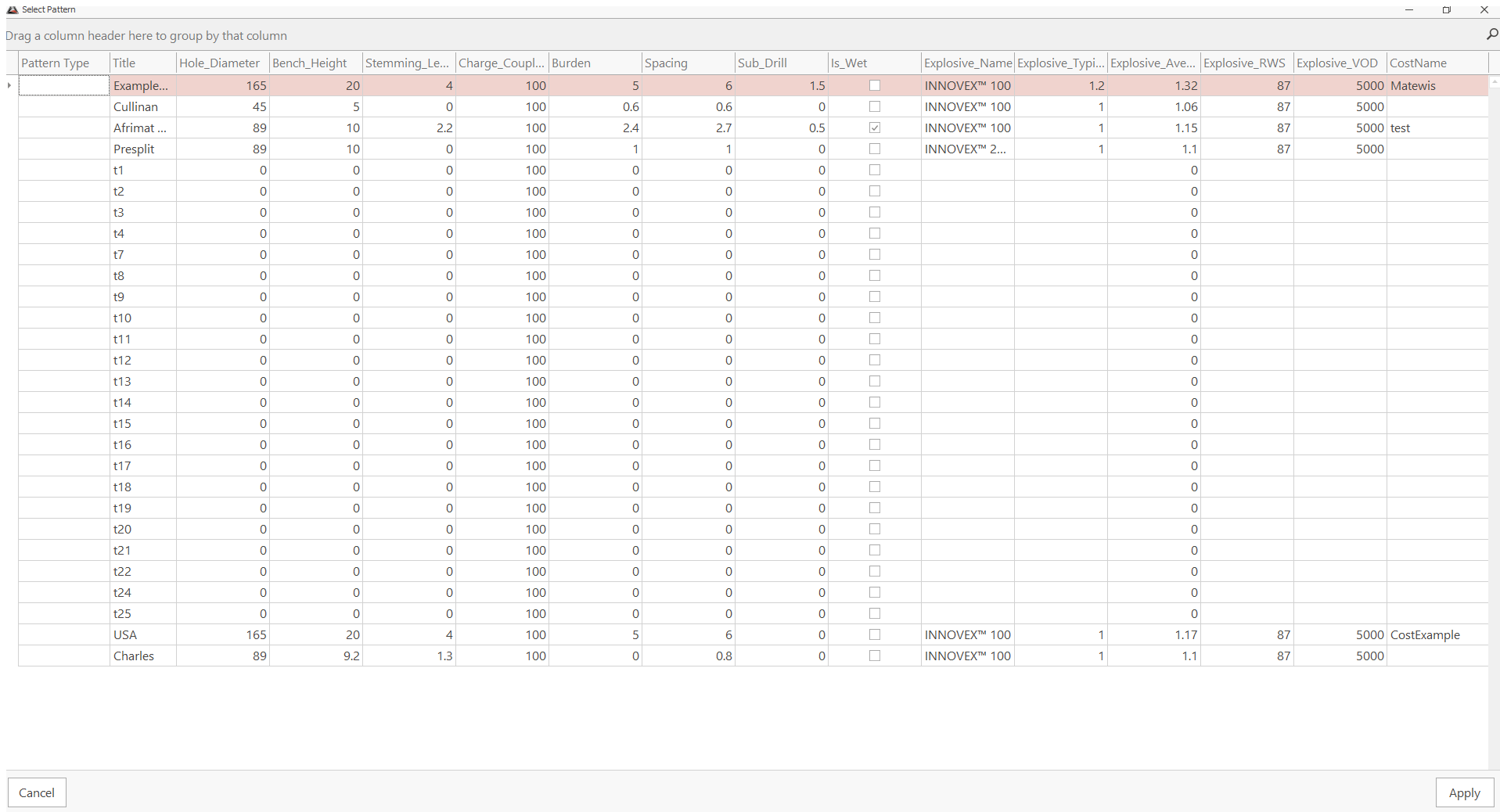

A list of all your pattern designs will appear to choose from.

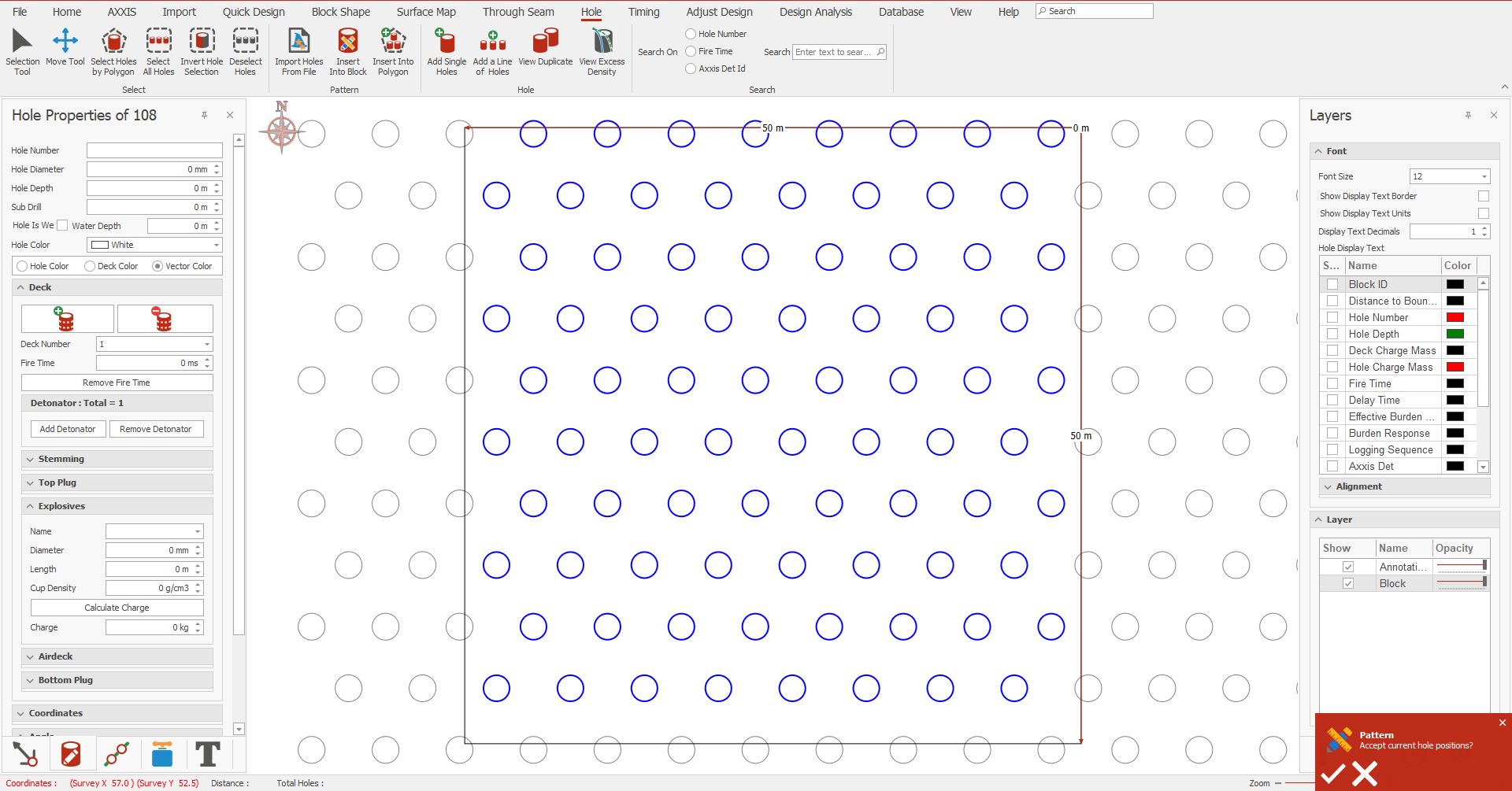

Once selected the pattern will be placed inside the block outline.
Holes that is blue will be included and grey colored holes will be excluded. In this mode you can rotate and move the holes in the design with the arrow keys.
Hold crtl + left arrow or ctrl + right arrow to rotate.
Press the accept button in the bottom right corner to finalize the hole placement. Pressing the enter key will also accept.
3

Insert Into Polygon button

3. Insert Into Polygon button

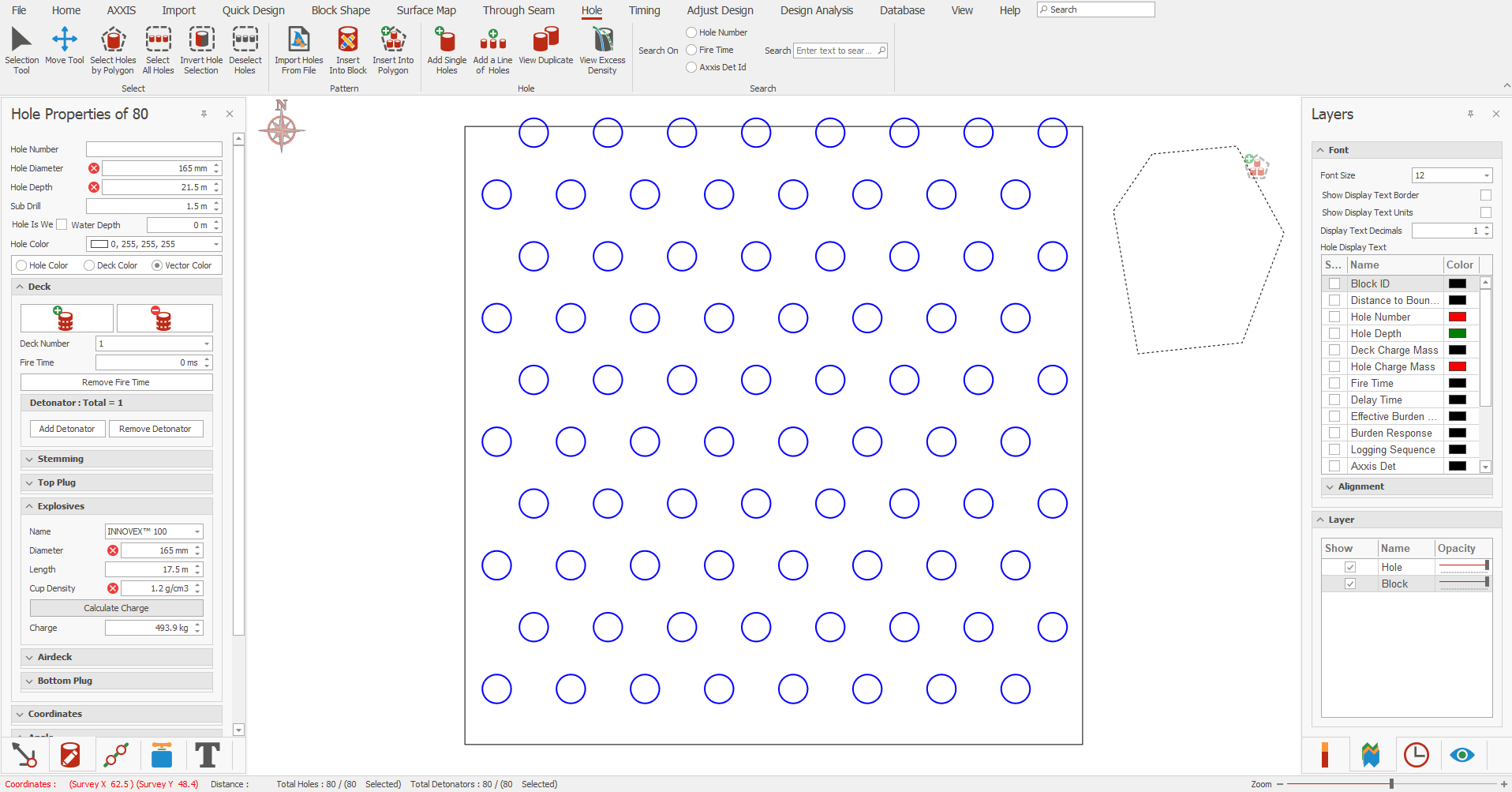

This function will insert a pattern design from your database into a polygon.
When pressed a list of your pattern database will appear. Select your pattern.

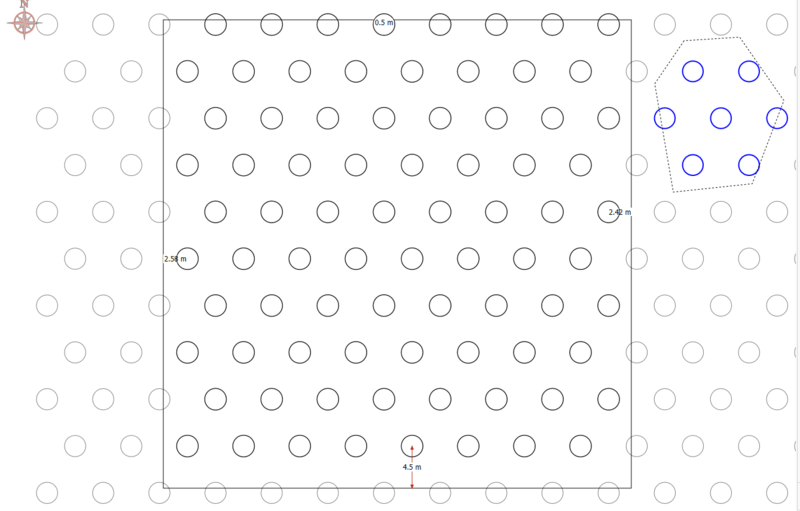

Then left-click on the canvas to start drawing a polygon, each left-click will ad a point .
Double left-click to finish the polygon.
Position and accept the pattern to finalize.
