Holes toolbar

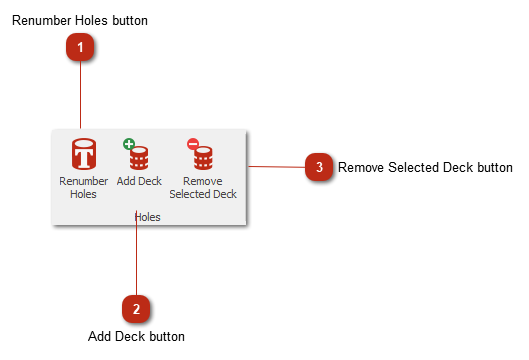

Holes toolbar
1

Renumber Holes button

1. Renumber Holes button
Used for numbering holes by lines.
Firstly the hole numbering properties window will appear.
If you only want to use numbers, leave the "Prefix" empty.
Press OK button to start renumbering.
Left-click on the canvas to start the line.
Subsequent left-clicking will add to the line.
The line will snap to the holes, when it does it will renumber those holes. The snapping sensitivity can be changed in user preferences->graphic defaults.
Double-click to end the line.
If you need to change the starting number or prefix (to identify a new row), press the Renumber Holes button again or the shortcut CTRL-R .
2

Add Deck button

2. Add Deck button
Adds a deck to the currently selected holes.
3

Remove Selected Deck button

3. Remove Selected Deck button
Removes a deck from the currently selected holes.
