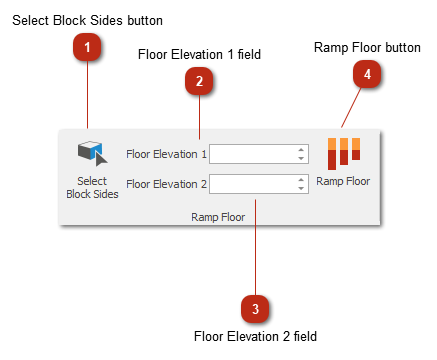

Ramp Floor field

Ramp Floor field
1

Select Block Sides button

1. Select Block Sides button

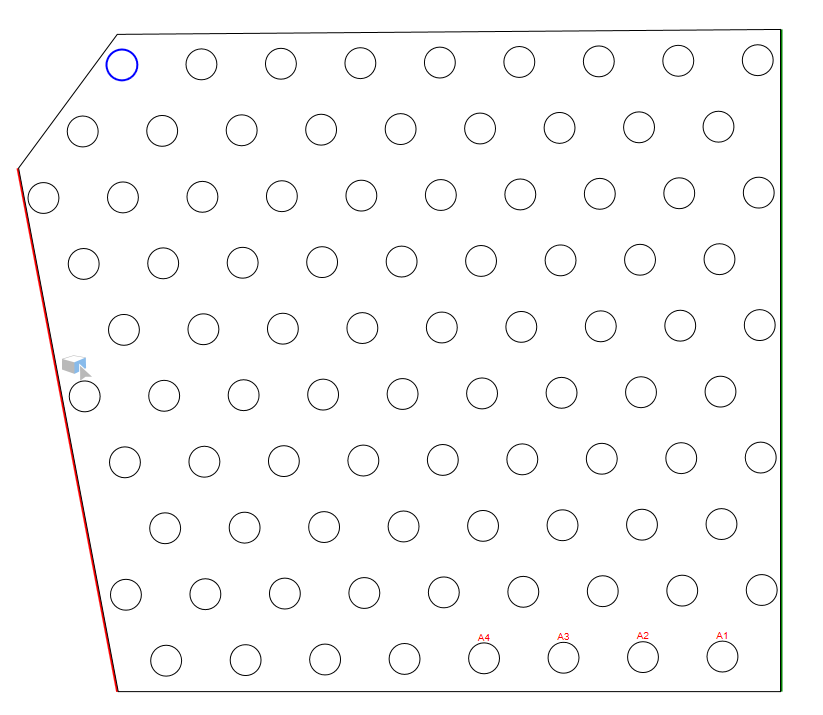

Select the block sides to indicate the start and end floor elevation.
Left click on block outline.
The first left click will color the block outline green (Floor elevation 1).
The second left click will color the block outline red (Floor elevation 2).
2

Floor Elevation 1 field

2. Floor Elevation 1 field
Change the floor elevation 1 (Green side).
3

Floor Elevation 2 field

3. Floor Elevation 2 field
Change the floor elevation 2 (Red side).
4

Ramp Floor button

4. Ramp Floor button
Ramps the floor, changing the floor elevation of the holes.
