How to Add a Pattern of Holes

This function will add a hole pattern design to the current design.

It will only work if the current design has a bench outline. The hole pattern is placed inside the bench outline area.

Adding a pattern design can be done multiple times with different patterns.

To add a pattern design do the following steps :

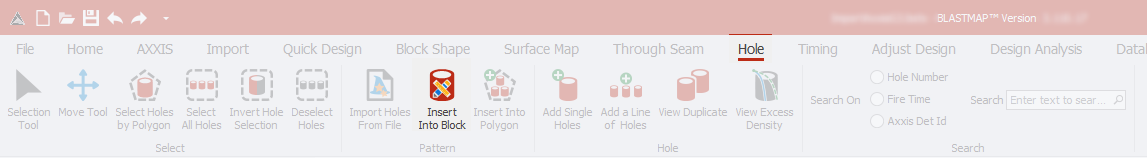

1. Select the "Insert Into Block" menu button.

2. Select the pattern design to apply to the holes being added.

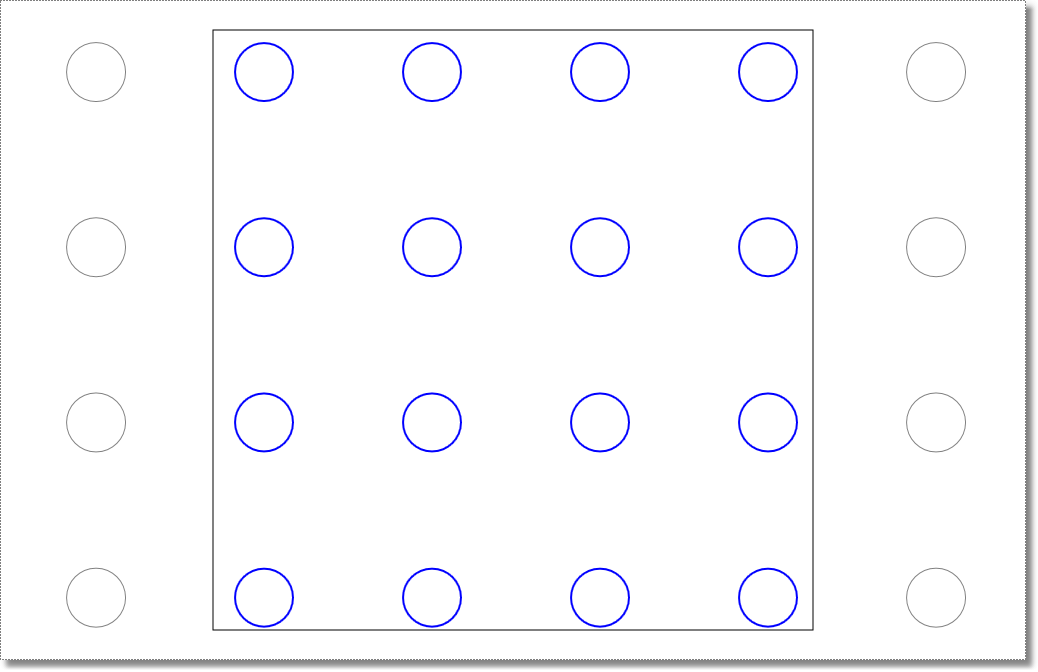

3. Use the arrow keys to position the holes accordingly to fit the bench outline area. Blue outline colored holes represents holes that are inside the area and grey outline colored holes represents holes outside the bench outline area.

4. Press the enter key to accept.
