How to Add a Single Prediction Points



Navigate to the Design Analysis menu.

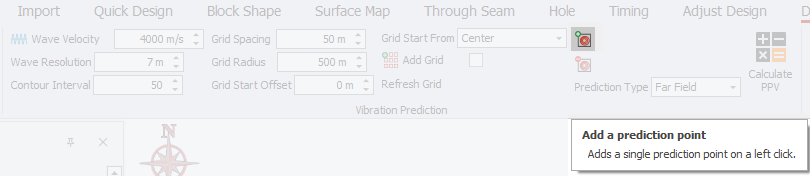

Left-click on the Add Single Prediction Point button.


Once you are in the "Add Single Prediction Point" mode, adding the prediction point becomes a 2 left-click operation.

The Check Distance tool is combined with the adding of single prediction point.

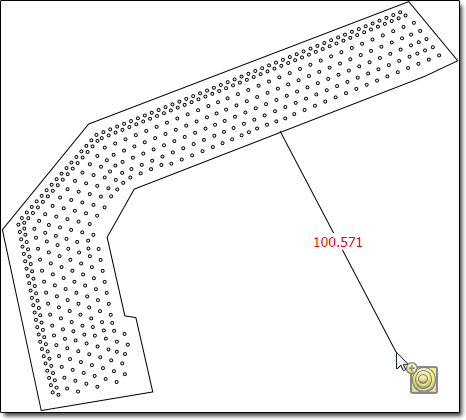

The first left-click sets the origin to check the distance from. And the second left-click sets the prediction point at the mouse position.

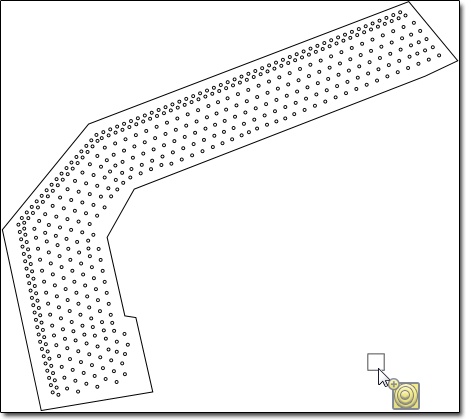

Note: If you don't want to check the distance , go to the position on the drawing canvas and double left-click to add the single prediction point.
