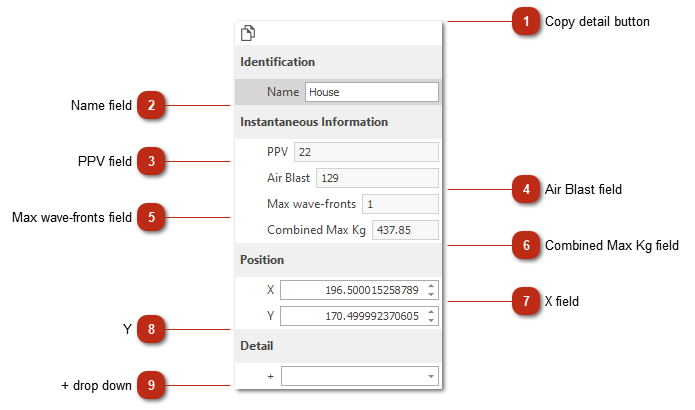

Prediction Point popup menu


Left-click on a prediction point to see this menu.
Prediction Point popup menu
1

Copy detail button

1. Copy detail button
Copies the content as text to the clip board.
The data can then be pasted in any text editor.
2

Name field

2. Name field
Name of the prediction point.
This field can be edited.
3

PPV field

3. PPV field
Calculated Peak particle Velocity value.
4

Air Blast field

4. Air Blast field
Calculated air blast value of the prediction point.
5

Max wave-fronts field

5. Max wave-fronts field
Displays the maximum amount of wave fronts that hits the prediction point at the same time.
6

Combined Max Kg field

6. Combined Max Kg field
Displays the maximum charge amount that hits the prediction point at the same time.
7

X field

7. X field
Displays the prediction points X - Coordinate value.
Changing this value will move the prediction point.
8

Y

8. Y
Displays the prediction points Y - Coordinate value.
Changing this value will move the prediction point.
9

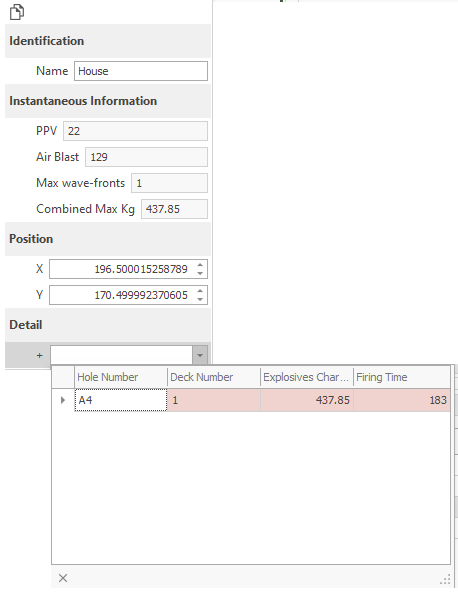

+ drop down

9. + drop down
This will display the origin holes that generated the max wave fronts that hit this point.
The Firing Time can be directly edited in the display.
