How to Add a Grid of Prediction Points

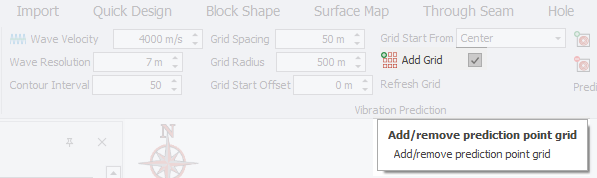

The following fields needs to be completed before adding the grid.
-
Wave Resolution - Determines the size of the prediction point
-
Grid Spacing - Distance between the prediction points
-
Grid Radius - Sets the perimeter of the grid around the center of the blast design.
-
Contour Interval - Sets the increment range for the PPV leggend.

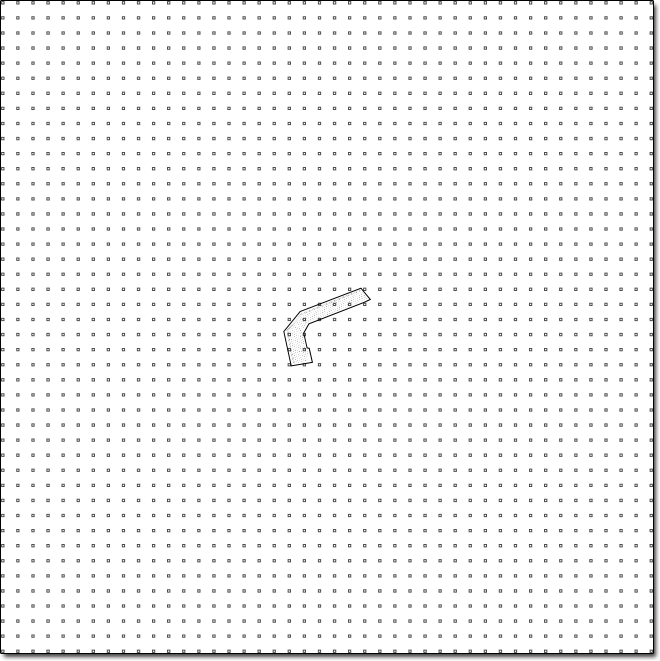

After the above fields is completed left-click on the Add Grid check box to add the prediction point grid.
Note: When the Add Grid check box is checked the prediction point Grid is added and when unchecked it is removed from the design.
