BLASTMAP™

User guide

×
Menu
Index
Search





  (c) BME, 2020

Print

Print

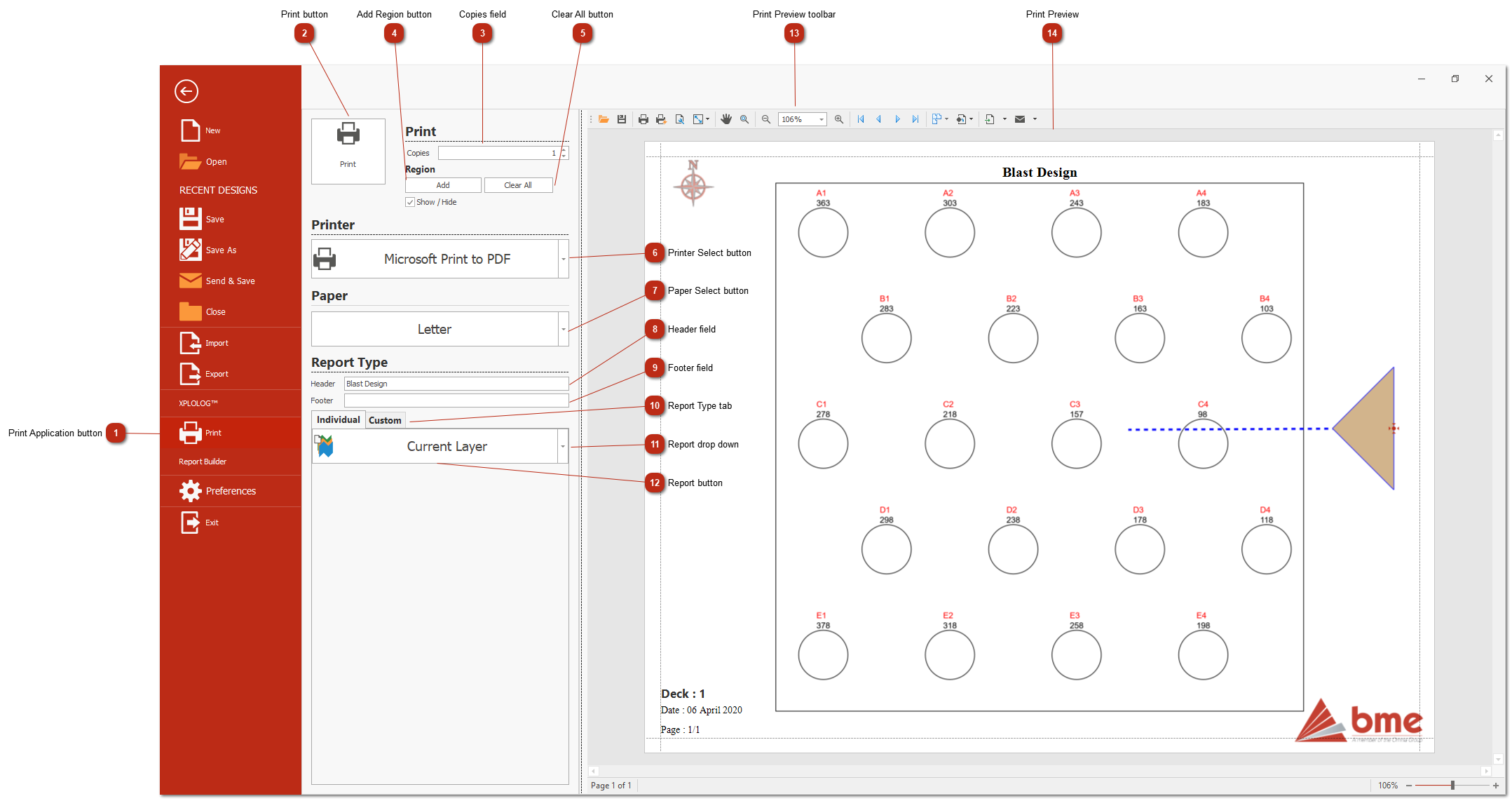

To see / print reports use the "File" button in the top menu and select print.
1

Print Application button

1. Print Application button
Press this button to open the print section in the application menu.
2

Print button

2. Print button
Sends the displayed report to the printer.
3

Copies field

3. Copies field
Amount of copies to print.
4

Add Region button

4. Add Region button
Switches to add Region mode and will remain in this mode until another mode is selected.
5

Clear All button

5. Clear All button
Removes all regions from the design.
6

Printer Select button

6. Printer Select button
Select printer.
7

Paper Select button

7. Paper Select button
Select paper.
8

Header field

8. Header field
Displays this field as a header in selected report.
9

Footer field

9. Footer field
Displays this field as a footer in selected report.
10

Report Type tab

10. Report Type tab
Select report type here.
  • Individual - One report at a time.
  • Custom - Combined reports that are saved and constructed using the Report Builder.
11

Report drop down

11. Report drop down
Click on this arrow to see the lists of multiple reports.
12

Report button

12. Report button
Generates the selected report.
13

Print Preview toolbar

13. Print Preview toolbar
Toolbar
14

Print Preview

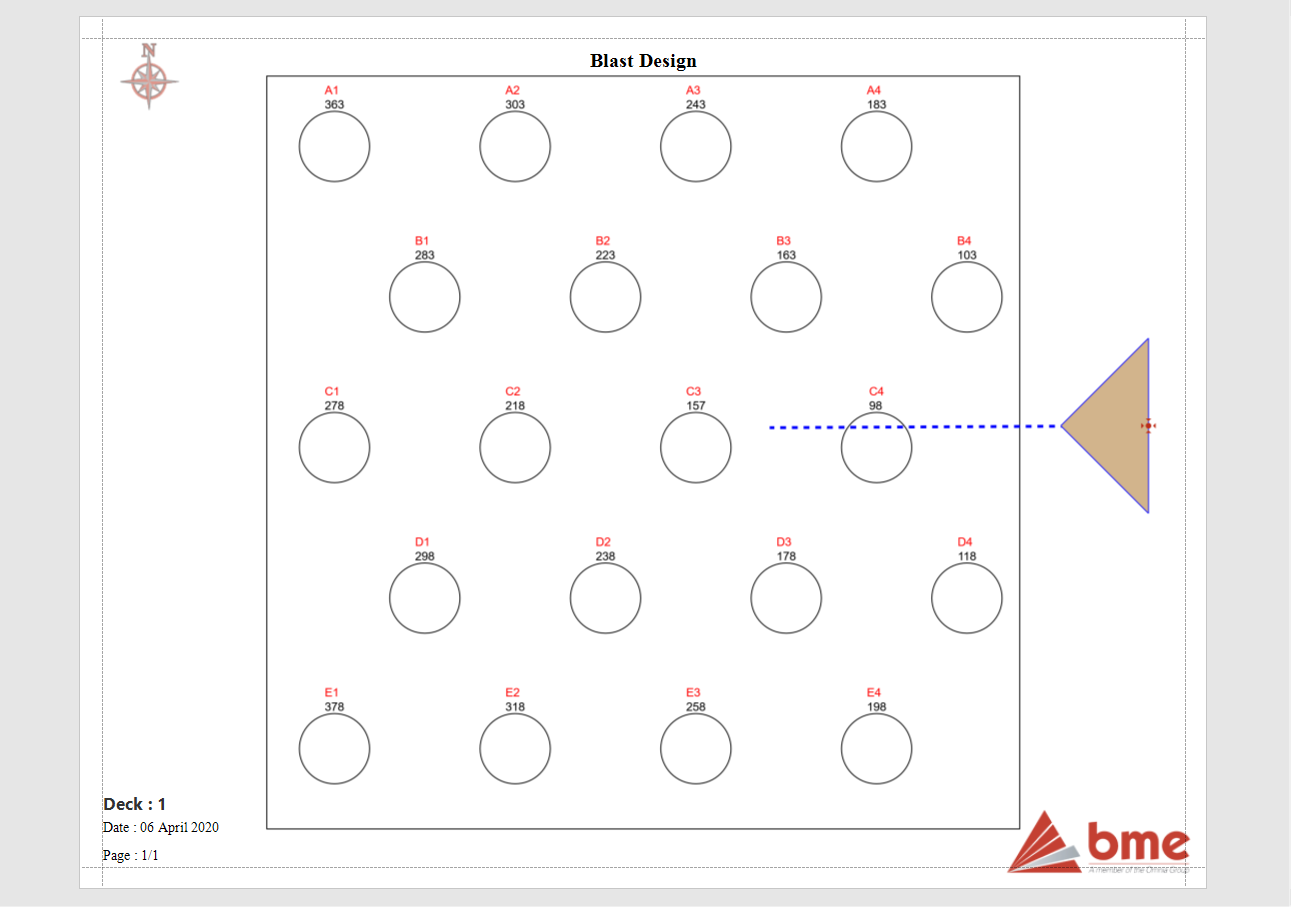

14. Print Preview
Print preview of selected report.
