Regions is user allocated area's on the main design.
Each region will be printed to its own page in the selected report.
The regions are polygons that are drawn on the design.
Why use regions?
When a design has many holes its difficult to jam everything onto one page for printing, especially when text on the holes are being displayed.
Regions will separate the block into individual pages.
Reports using regions
The only reports that will work with regions are the "Current Layer" report and the "Technical Drawing" report.
Both of these reports renders a visual report on the hole layout in a block.
It is recommended to use the "Technical Drawing" report with regions.
Adding regions

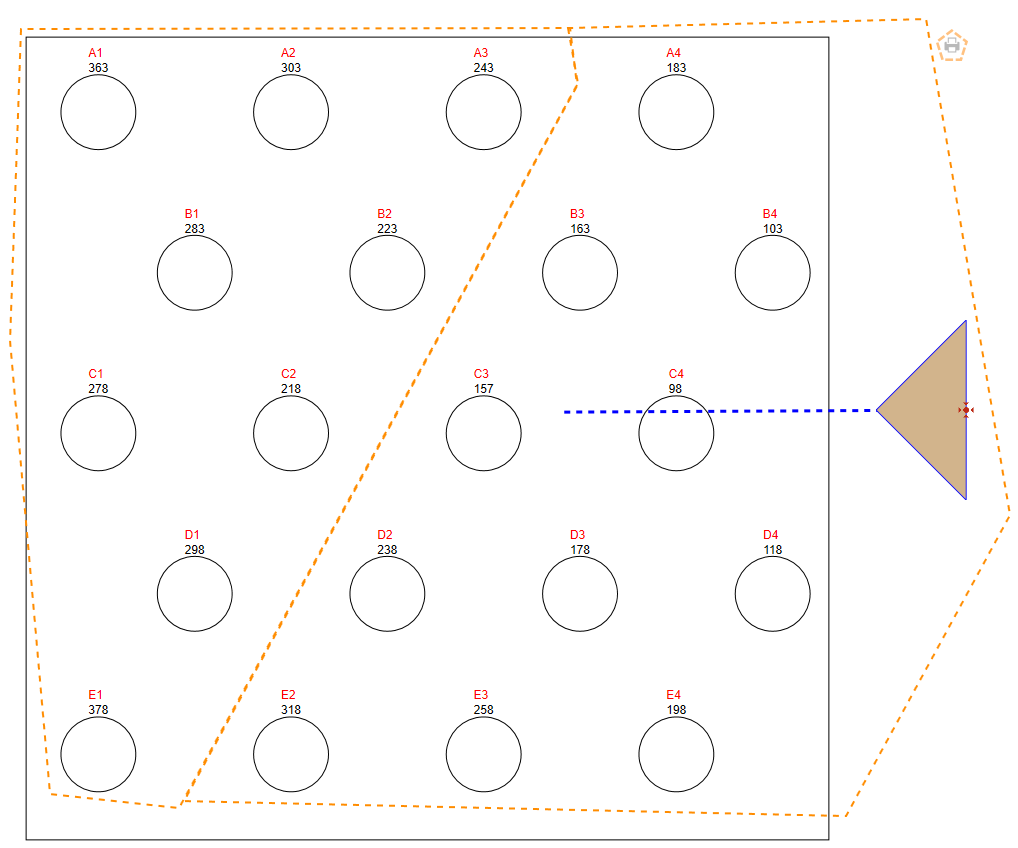

When in the add regions mode, use left-click on the mouse to start adding points to a region.
To finish the region double-left click on the design.

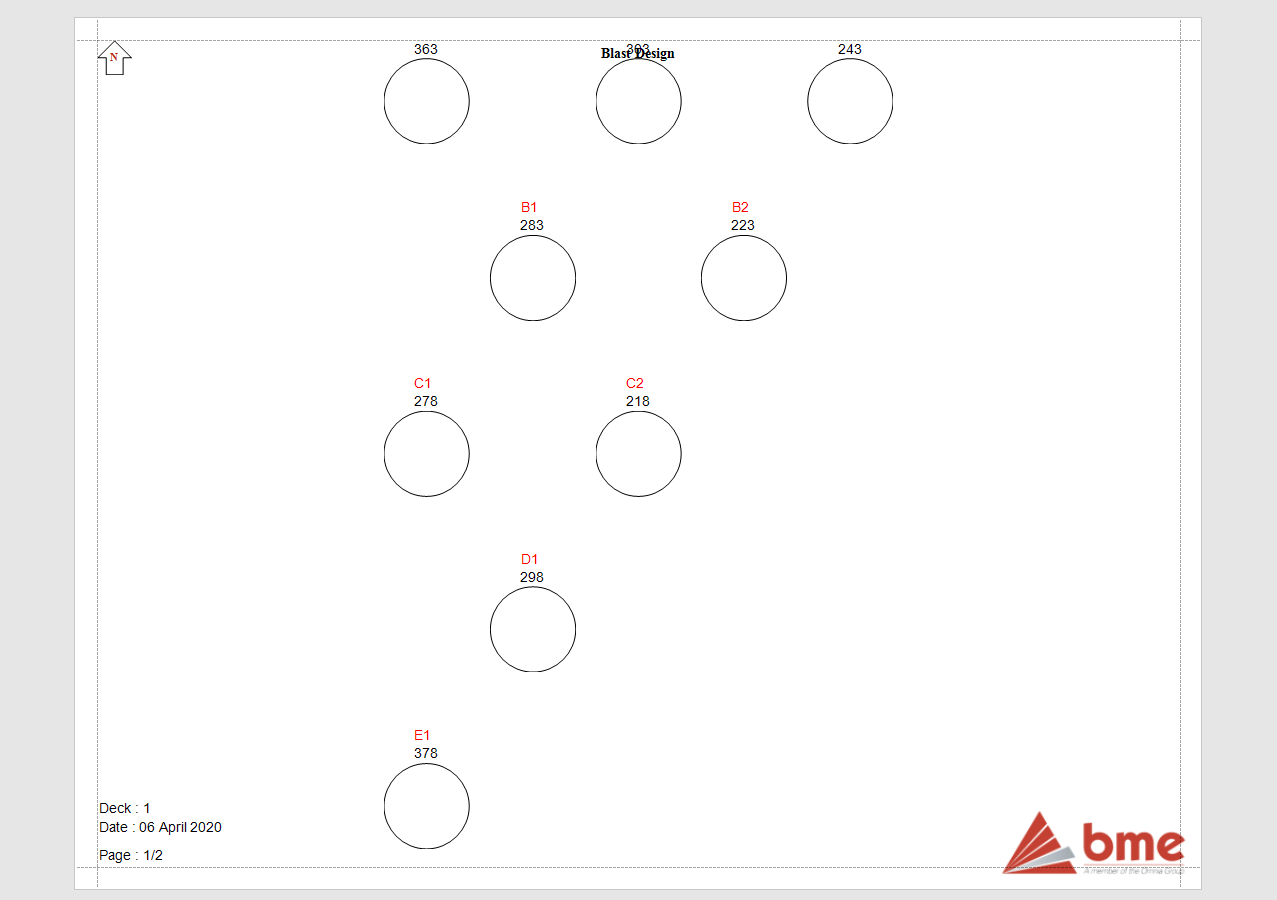

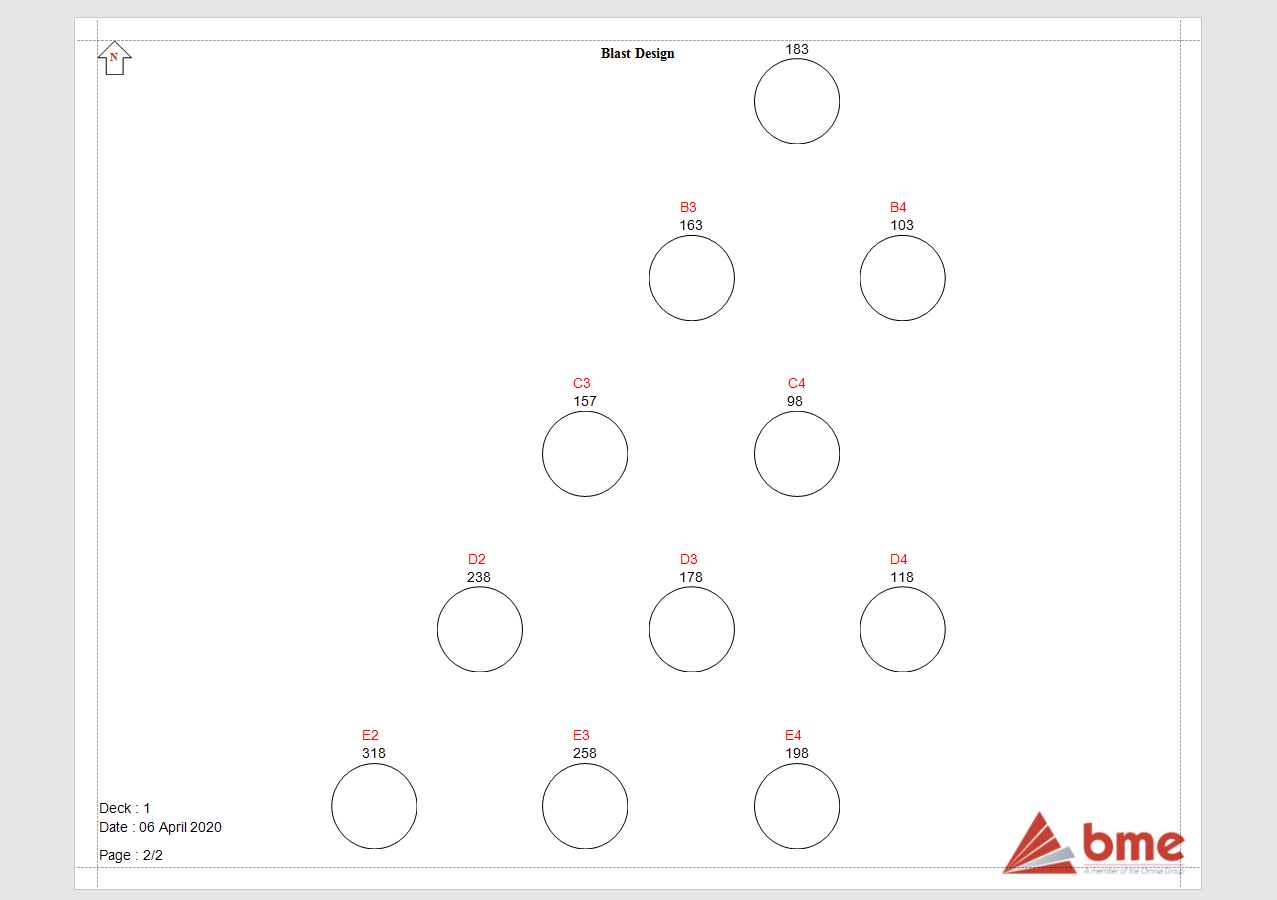

The holes inside the region will be printed to a single page.
Region printing
Clear All Regions
Will remove all regions from your design.
