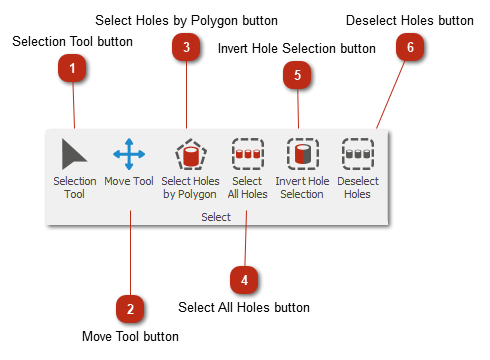

Select toolbar

Select toolbar
1

Selection Tool button

1. Selection Tool button
Switches to the default select mode.

2

Move Tool button

2. Move Tool button
Switches to move mode.
This mode allows you to move selected holes with the mouse.
Left-click on a selected hole/holes and drag while holding the left-mouse button. Release to button to stop moving holes.
In this mode you can also drag and select around holes.
3

Select Holes by Polygon button

3. Select Holes by Polygon button
Select the holes by left-clicking around a group of holes. By clicking you will add a point to the select polygon.
Once you are finished, double left-click on the canvas to stop and close the polygon. Every hole inside the polygon will then be selected.
4

Select All Holes button

4. Select All Holes button
Selects all the holes in the design.
5

Invert Hole Selection button

5. Invert Hole Selection button
Inverts the selection.
6

Deselect Holes button

6. Deselect Holes button
Deselects all holes.
