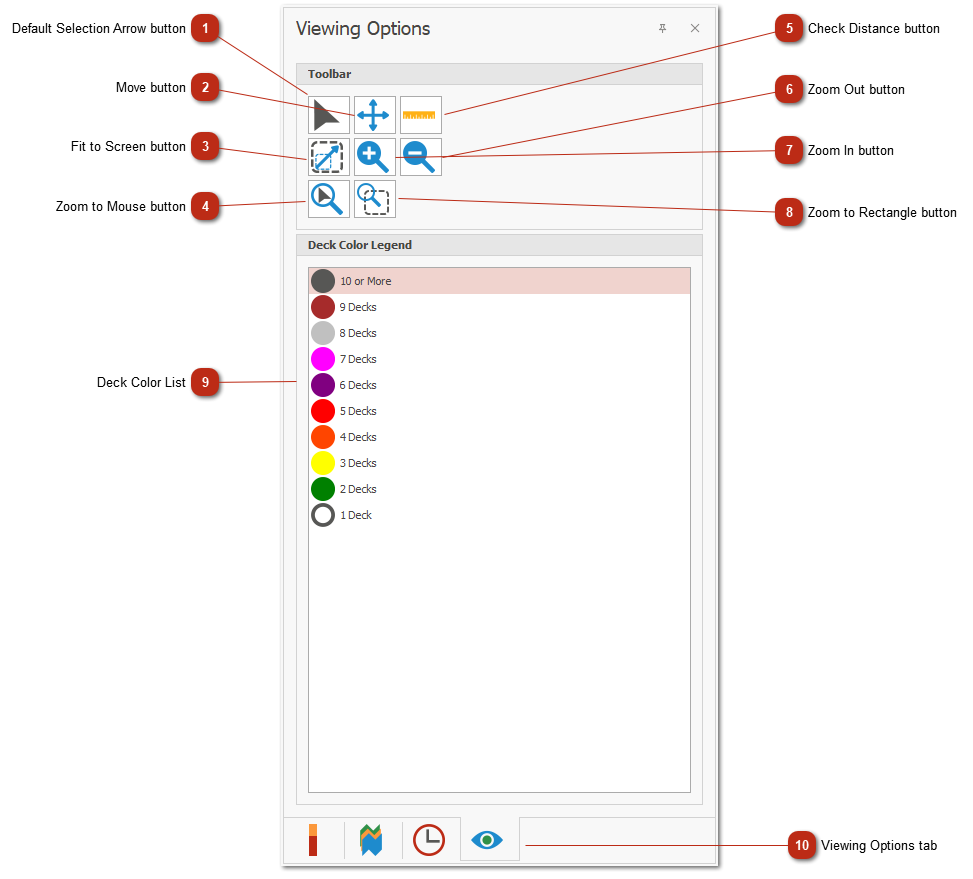

Switch to default select mode.

Switch to move mode.

Selected holes can be move with mouse left click and drag operation.

Fits design to screen, when zoomed in / out.

Zooms to mouse cursor position using mouse wheel.

Switch to check distance mode.

In this user mode the distance between 2 points on a line is measured. Left click on the drawing canvas to set the origin point. While moving the mouse around the canvas, the distance is shown from the mouse pointer to the origin point. When left clicking again the distance line will be cleared from the drawing canvas. Note that you will stay in this mode unless you indicate otherwise.

Zooms one step out.

Zooms one step in.

Left click and drag operation to start drawing a yellow rectangle.

When finished, release and BLASTMAP^TM will zoom to that area.

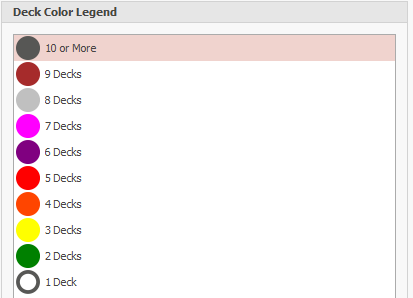

Display deck color in the hole properties dock panel will display a different color for the amount of decks in a hole.

This is the list of those colors. The color range is from 1 - 10 decks.

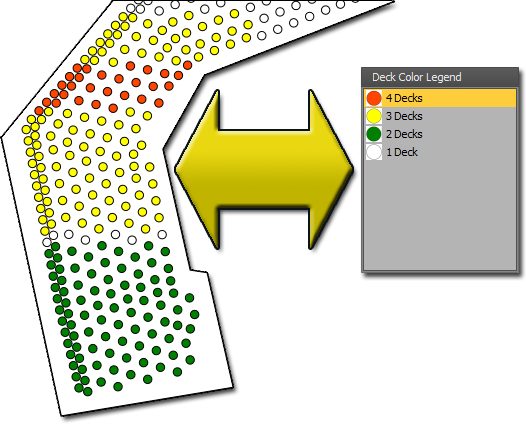

Left clicking on a deck in the deck color legend will select all the holes with the same amount of decks in them.
